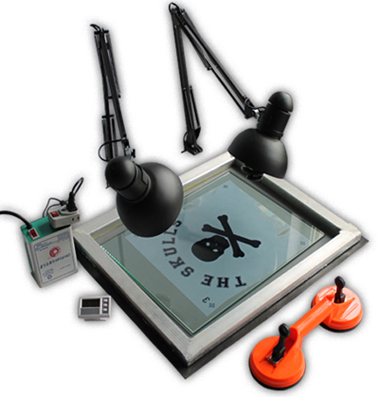

This simple UV Exposure Unit Kit is especially designed for personal usage in screen printing; it is easy operated and with very low cost, which will also be the best choice for new hand to start screen printing business.

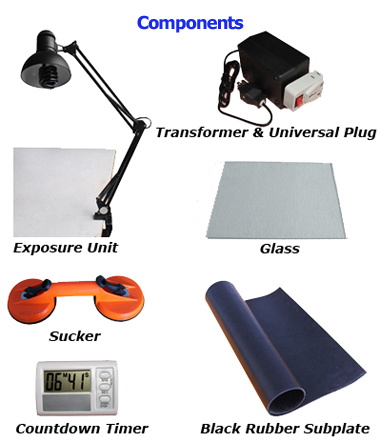

  • The exposure unit is exposed of two 26W UV tubes, which can be swivel adjusted while exposing.
  • The holders can be easily installed because of the two-way clamps; besides, it can be adjusted in different heights and angles to satisfy different exposing demands.
  • The equipped countdown timer makes it easier for exposing time controlling.
  • The equipped black rubber subplate can reduce the ultraviolet reflection during exposing, which can guarantee a better exposure effect.
  • The equipped glass can guarantee a closer contact between the transparency film and the screen plate; besides, because of the glass sucker, glass taking is safer and much more convenient.
  • The equipped transformer can change the 110V into 220V, which makes it much more suitable for Canada & US customer.
  • The equipped universal switch plug can guarantee the two exposure unit working simultaneously.


  • Input Voltage of Exposure Unit: 220V
  • Transformer Model: Change 110V into 220V
  • Exposure Area: 19.7"x23.7" (50x60cm)
  • Glass Size: 14.6"x18.5"x0.3" (37x47x0.8cm)
  • Rubber Subplate Size: 19.7"x23.6" (50x60cm)
  • Light Tube Power: 26W/pc
  • Total Powder: 52W
